Belgard® Wall
Diamond Pro® Air
The Diamond Pro Air is an innovative lightweight wall block that’s 30% lighter for efficiencies on every level.
Features & Benefits
- Lightweight – Easier to transport, handle, and install; improves jobsite productivity.
- Locator-Lug System – Ensures consistent 4° batter and precise alignment.
- Minimal Excavation Required – Near-vertical design saves space and reduces material removal.
- Large 1 sq ft Block Size – Speeds up installation and simplifies planning.
- Radius Capable – Allows curved wall designs with tight outside radii.
Available Colors (Smooth)

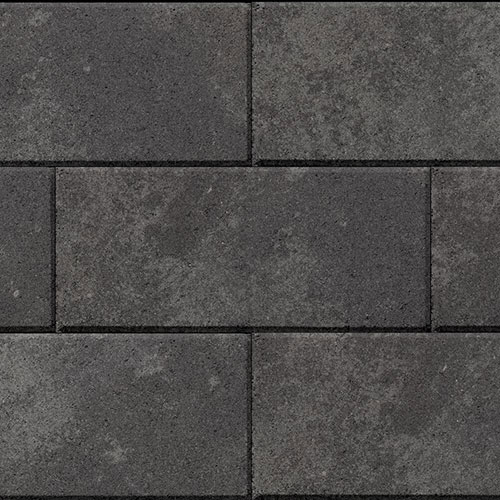

ANTHRACITE

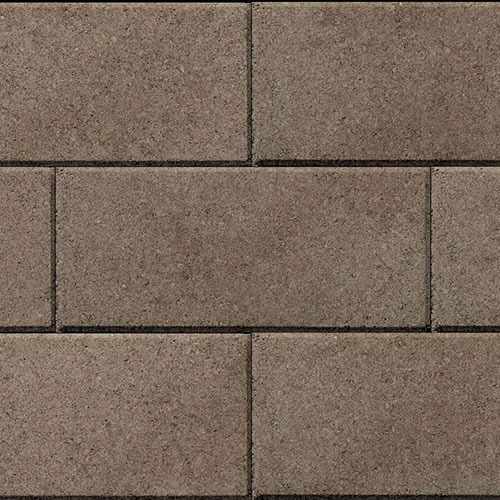

HICKORY

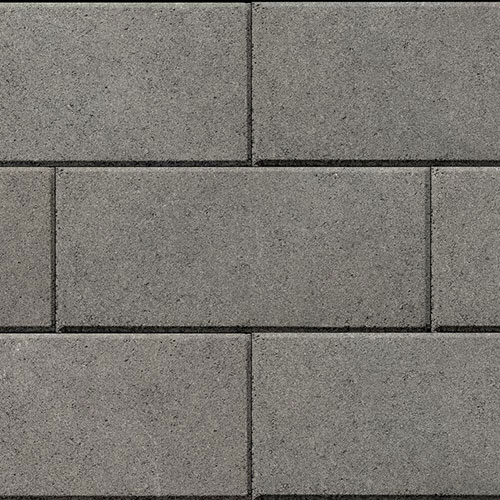

SHADED GRAY
Specifications
| UNIT | WIDTH | DEPTH | HEIGHT | SQ.FT. / PALLET | UNITS / PALLET | PALLET WEIGHT |
|---|---|---|---|---|---|---|
| Wall Block | 18″ | 11.5″ | 8″ | 36 | 36 | 2,008 lbs. |
| Cap | 18″ / 12″ | 12″ | 4″ | 67.5 | 54 | 3,138 lbs. |
| Light-weight Corner | 18″ | 9″ | 8″ | 54 | 36 | 2,760 lbs. |
| Corner | 17″ | 8″ | 8″ | 22.6 | 24 | 1,980 lbs. |
